Video

Introduction

CS:DM allows you to generate videos, images, and/or audio from demos.
This feature is accessible by clicking on the Video tab from a match.
Video jobs are added to a queue, allowing you to schedule multiple videos…

How does it work?

CS:DM starts Counter-Strike, plays the demo and executes a game command that generates many uncompressed image files (.tga) and an uncompressed audio file (.wav) hereafter referred to as raw files.
Once the recording ends and Counter-Strike is closed, the application uses FFmpeg or VirtualDub to generate the video(s) from the raw files.

note

Raw files are not needed when using HLAE with FFmpeg and the output is video.
This configuration allows you to save disk space and time.

Compatibility

OSCSGOCS2Death notice edition (HLAE)Encoding software
WindowsFFmpeg/VirtualDub
LinuxFFmpeg
macOS-FFmpeg

Terminology

Tick

Ticks are a unit of time the game uses; you can think of it as seconds.
For CS2, 1 second corresponds to 64 ticks. For CS:GO, it depends on the server's tick rate (usually 64 or 128).
Because seconds are more accessible for humans, the application allows you to edit the duration in seconds and converts it automatically to ticks.

Sequence

A sequence is a part of the demo you want to record, defined by a start tick and an end tick.
You need to add one or more sequences, which you can merge into a single video or generate one video per sequence.

Video ID

Each video has a unique ID generated by the application and used to create a unique folder where the raw files and/or the video(s) will be saved.
These unique IDs prevent overwriting files when generating multiple videos.

Interfaces

Video generation

Video generation window

  1. Button to add a sequence from a dedicated window.
  2. Output options (resolution, encoder software, etc.).
  3. HLAE options (Windows only).
  4. Encoder software options (FFmpeg/VirtualDub).
  5. Match's comment.
  6. Sequences timeline.
  7. Video queue.

Sequence edition

Add sequence window

  1. The inputs to set the sequence start/end ticks. You would probably not type the ticks manually but use the rounds timeline below.
  2. Buttons to generate/remove cameras focus.
  3. In-game options.
  4. The sequence's duration, how much disk space it requires and a button to add it.
  5. The list of camera players focus during the sequence.
  6. Players options.
  7. Game commands executed when the sequence starts.
  8. Rounds timeline.
tip

Each player has a distinct color that is used to highlight the player's camera focus in the timeline.

Installing/updating required software

HLAE

HLAE is a Windows-only tool that adds movie-making features to Counter-Strike such as advanced camera control, visual effects, HUD alteration…
CS:DM uses HLAE mainly to:

  • Avoid the need to generate temporary raw files that take up disk space.
  • Define where raw files will be saved (the startmovie command doesn't allow you to choose the output folder).
  • Customize the death notices.

To install or update HLAE, click on the corresponding button from the HLAE options.

HLAE installation

warning

Updating HLAE is strongly recommended as game updates may break HLAE compatibility!
Please note that HLAE compatibility updates may take some time to be released after a breaking game update.

Custom location

You can use a custom HLAE build by going to Settings -> Video.
From the HLAE section, click on Enable custom location and select the path to the HLAE.exe file.

FFmpeg

FFmpeg is a free and open-source software used to generate the video(s) from the raw files.

To install or update FFmpeg, click on the corresponding button from the FFmpeg options.

FFmpeg installation

Custom location

You can use a custom FFmpeg build by going to Settings -> Video.
From the FFmpeg section, click on Enable custom location and select the path to the ffmpeg.exe file.

warning

When using a custom FFmpeg build, the auto-update feature is disabled - you will have to update it manually.

VirtualDub

VirtualDub is a Windows-only software used to generate uncompressed video(s) from the raw files.
In the context of CS:DM, it aims to assist moviemakers who want to edit the video(s) with video editing software such as Adobe Premiere, Sony Vegas, etc.

To install VirtualDub, click on the corresponding button from the VirtualDub options.

VirtualDub installation

Output options

General options

Recording system

Recording system refers to the software and its commands that will be used to generate the video.
There are 2 options:

  • Counter-Strike: through its startmovie command that generates raw files.
  • HLAE: through its mirv_streams commands that internally use the CS startmovie command but enhance it.
tip

If your goal is to generate a video and you are on Windows, the best option is to use HLAE + FFmpeg as it doesn't need to generate raw files and is faster.

Output

  • Video: generate a video file - you can change the container format (.mp4, .avi…) from the FFmpeg options. When using VirtualDub, the format is always .avi.
  • Images: generate images (.tga) and audio (.wav) files.
    This option is useful if you want to edit the video with video editing software and need to have the raw files.
  • Images and video: combine the above options - generate images and audio files and then generate the video from them.

Encoder software

Set the encoder software that will be used to generate the video(s).
You can choose between FFmpeg and VirtualDub (Windows only).

note

VirtualDub generates uncompressed videos. It's recommended only for editing the video with video editing software.

Width

Set the video width.

Height

Set the video height.

Frame rate

Set the video frame rate.

Output folder

Set the folder where the output will be saved.
The files will be located in a subfolder that has the video ID as the name.
The default location is the folder where the demo is located. If you change it, the application will remember and use it for the next recordings.

danger

Because the startmovie command creates raw files in the game installation folder, ensure you have enough space on the disk where the game is installed.
The app warns you if the required disk space is above 40GB.
The only case where disk space is less of a concern is when using HLAE + FFmpeg and the output is a video because the video is generated directly without raw files.

Close the game when recording is done

When enabled, the application automatically closes the game after recording completes.

Show only death notices

If enabled, only death notices will be shown in-game.

Concatenate sequences

If enabled, all sequences will be merged into a single video.

HLAE options

HLAE options

Config folder

From the HLAE documentation:

(Optional, but recommended) This creates a fresh config folder for your custom config(s) and video settings. If the folder doesn't already exist, HLAE will create it for you when you launch the game. After the folder (and files) have been created, you can add your custom config(s) in the cfg folder (the same place as the config.cfg).
Note: If you don't use this feature, HLAE will use the same settings as your regular gaming config and video settings, and if you make any config, command, or graphics changes, those may carry over to your gaming config, and vice versa.

Parameters

Additional parameters that will be passed to HLAE.
See the HLAE documentation for more information.

FFmpeg options

FFmpeg options

Audio codec

Set the audio codec corresponding to the -acodec FFmpeg option.
The default codec is libmp3lame.
For detailed information, refer to the FFmpeg documentation.

Audio bitrate

Set the audio bitrate corresponding to the -b:a FFmpeg option.

Video container

Set the video container format, it's the file extension passed to FFmpeg.

Video codec

Set the video codec corresponding to the -vcodec FFmpeg option.
The default codec is libx264.
For detailed information, refer to the FFmpeg documentation.

Quality

Set the video quality for the selected video codec corresponding to the -crf FFmpeg option.
A lower value generally leads to higher quality but larger file sizes.

warning

This option has no effect and the input is disabled if you defined a custom FFmpeg output parameters when using HLAE + FFmpeg.
The reason is that it allows you to have more control over the parameters passed to FFmpeg through the HLAE recording preset (this is for advanced usage).
The only parameter that is always passed to FFmpeg is the video codec (-c:v parameter) which is set to the value in the video codec option.
In such case and if you want to use the -crf parameter, you will have to set it in the FFmpeg output parameters.

Input parameters

Set additional FFmpeg input parameters.
It corresponds to input_file_options in the FFmpeg command line synopsis.

Output parameters

Set additional FFmpeg output parameters.
It corresponds to output_file_options in the FFmpeg command line synopsis.

tip

When using HLAE + FFmpeg and the output is video, these parameters will be passed to FFmpeg through the HLAE recording preset.
The application generates the following recording preset:
mirv_streams settings add ffmpeg customPreset "OUTPUT_PARAMETERS_HERE" video.avi

Adding a sequence

To add a sequence, click on the Add new sequence button from the Video tab.

Start/end ticks

To define the start/end tick of the sequence, you have 2 options:

  1. Type the ticks manually in the inputs.
  2. Use the timeline's context menu.
tip

Using the timeline context-menu is easier to use.
For example, if you right-click on a round, you will be able to change the ticks quickly:

Round context menu

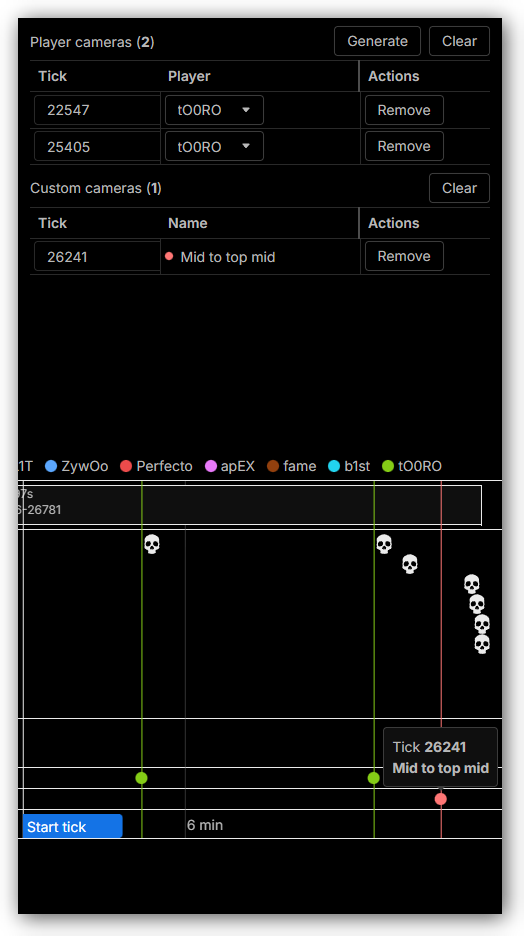

Cameras focus

You can ask to focus the camera on a specific player at any tick during the sequence.
To do so, you have 2 options:

  1. Right-click on an event from the timeline, go to Focus camera and select the player.
  2. Click on the Generate cameras button to open the following dialog:
    Generate cameras dialog
    This dialog allows you to focus the camera on a player at the start of the sequence and generate cameras focus from events that happened during the sequence with a delay.

In-game options

In-game options

Player voices

Fully enable/disable player voices.

Show X-Ray

It turns on/off the Counter-Strike X-Ray mode.
When enabled, you can see all players through walls:
X-Ray mode

Show only death notices

It turns on/off the death notices using the cl_draw_only_deathnotices game command.

Players options

Players options

For each player, you can:

  1. Change the player's name
  2. Hide/show the player's kills
  3. Force highlight the player's kills (the notices will have red borders in-game)
  4. Enable/disable the player's voice (CS2 only)

CFG

Game commands that will be executed when the sequence starts.
Each command must be on a new line.

tip

You can also put HLAE commands (mirv_) here on Windows.

Starting the generation

danger

Always check how much disk space is required before starting the recording, and ensure your disk has enough space!
Disk space

Once you have added at least one sequence, click on the Add to queue button to add the video to the queue.
You will be redirected to the video queue:
Video queue

By default the queue is paused, click the Resume button to start the generation.
You can also pause/resume the queue, cancel the generation, and remove one or all videos from the queue.

Editing a sequence

To edit a sequence, double-click on it from the sequences timeline or right-click on it and click Edit.
Sequence context menu

You can also delete it by clicking Delete.

Tips

Timelines

The application shows timelines to help you add sequences based on round events and visualize the final sequences.
Timelines are interactive. You can click and drag to move on the timeline, use the mouse wheel to zoom in/out, and right-click to open a context menu.

Timeline

Generating player's sequences

To generate sequences for a specific player and a specific event (kills, rounds…), you have 2 options:

  1. From a match's scoreboard context menu, go to Generate video and click on the type of event you want to generate sequences from (kills, rounds…). Scoreboard context menu

  2. Click on the Generate player's sequences button from the Video tab.
    Generate player sequences dialog

tip

The dialog (option 2) gives you more control such as camera POV, start/stop delay, and weapon filter.

FAQ

I have an error when the game starts

Make sure to update HLAE - game updates may break HLAE compatibility.

I can't play the video

If you have a black screen or the video playback doesn't start when opening it in your video player, it's probably because your video player doesn't have the required audio/video codecs.

This can happen especially on Windows when using Windows Media Player.
The solution is to use a video player such as VLC that includes required codecs.
